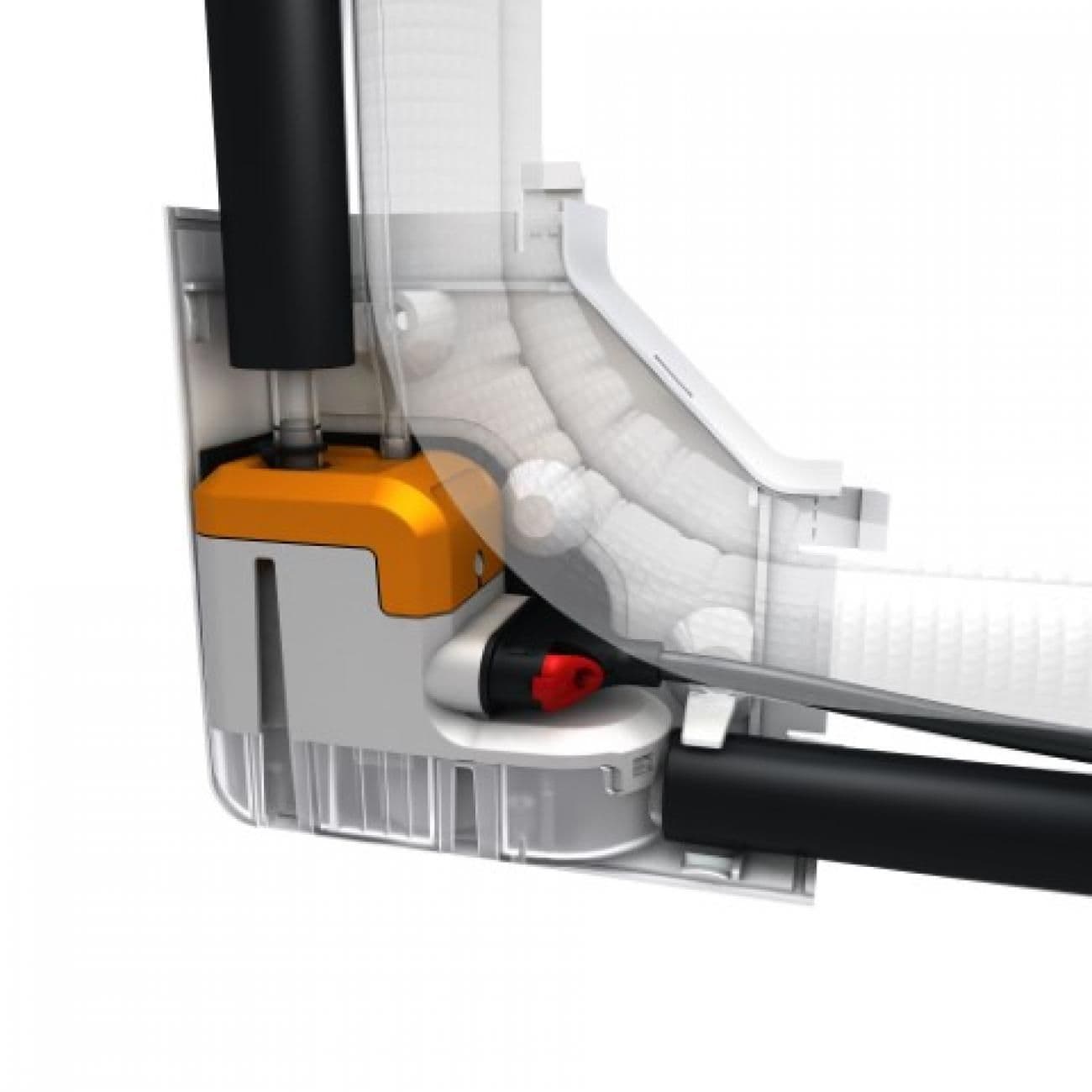

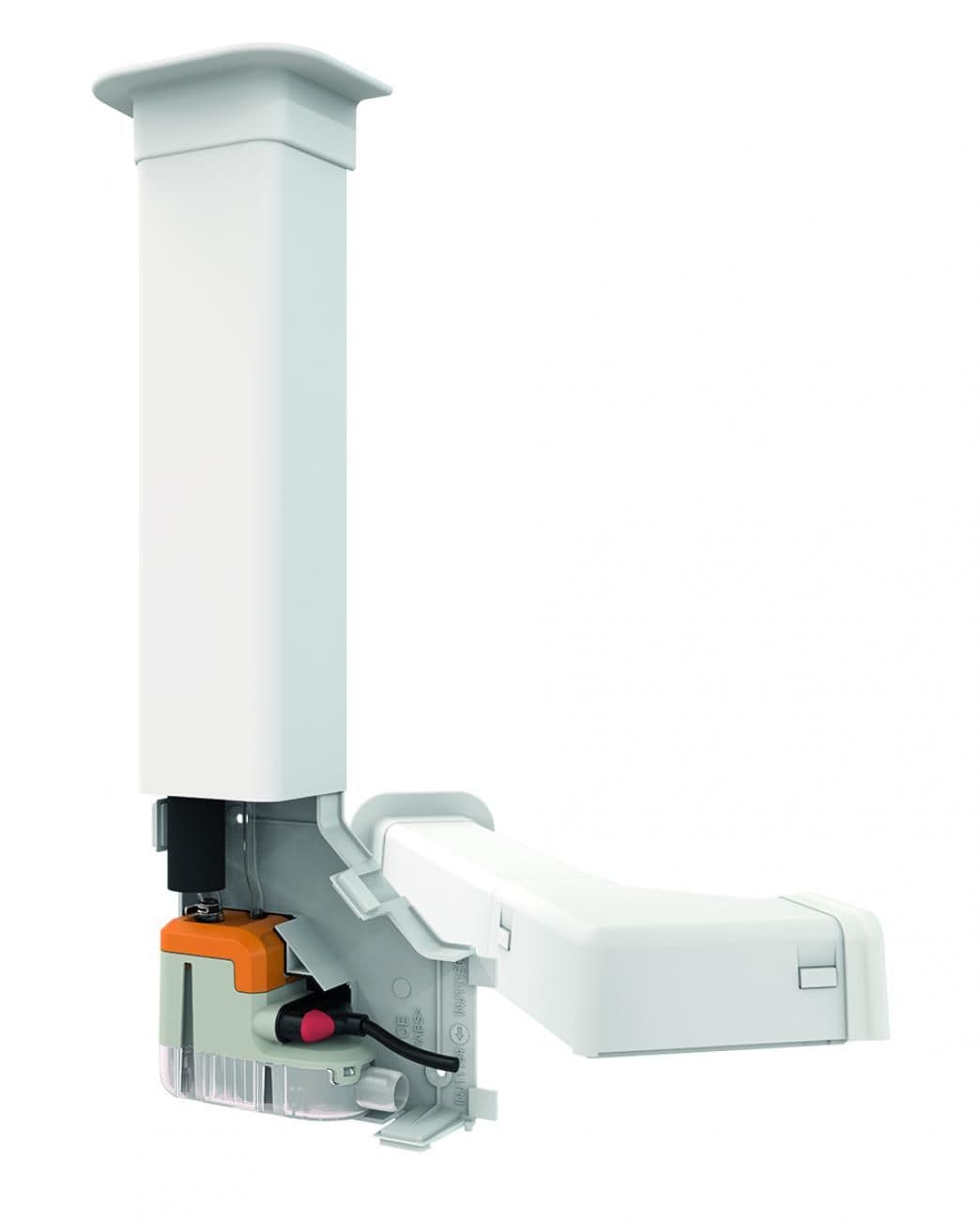

Complete kit intended for wall mounted air conditioning units. Includes a new elbow design that can be easily opened by hand by a simple finger push - no tool is needed - and the Si-10 UNIVERSL pump which incorporates the latest in piston pump technology. The new Delta Pack's streamlined design complements wall mounted air conditioning units. Low sound level and highly resistance to pollution created by the general environment.

Kit contents:

• Si-10 piston pump, with integrated float detection unit
• Clear PVC tube (6mm internal diameter - length 1m - foam-insulated over 800mm), fitted with a Drain Safe Device pre-mounted)
• 1,5 m lockable plug-in power cable, with 2 power wires and 2 safety contact wires
• Duct
• 2 part elbow (base + cover)
• Ceiling duct cover
• Elbow/Duct gasket
• Rubber elbow/split gasket
• Rubber tube (internal diameter 15 mm - connects to split)
• Vent pipe
• 6 screws and plugs for fixing duct and elbow
• 2 pipe clamps



Technical details

• Max flow rate
  5 gph
• Max discharge head
  33 ft
• Max pressure
  46 inches
• Insulation class
  Double insulation
• Mains supply
  230V ~ 50/60Hz ~ 14W
• Operation conditions
  100%
• Protection
  IPX4
• Color
  RAL 9003
• Master pack quantity
  5
• Safety switch
  NC 8 A resistive - 250 V
• Detection
  Integrated detection floats
