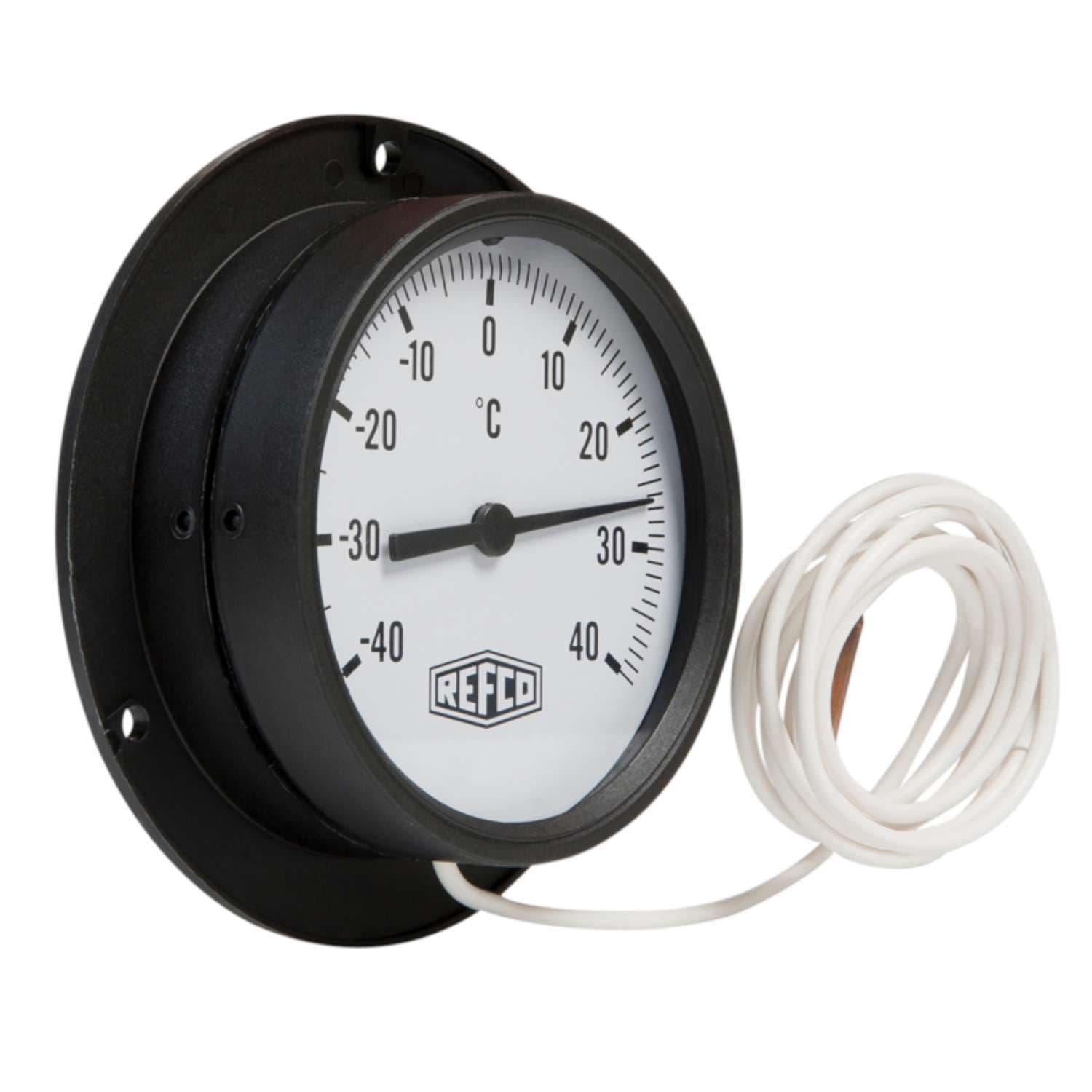

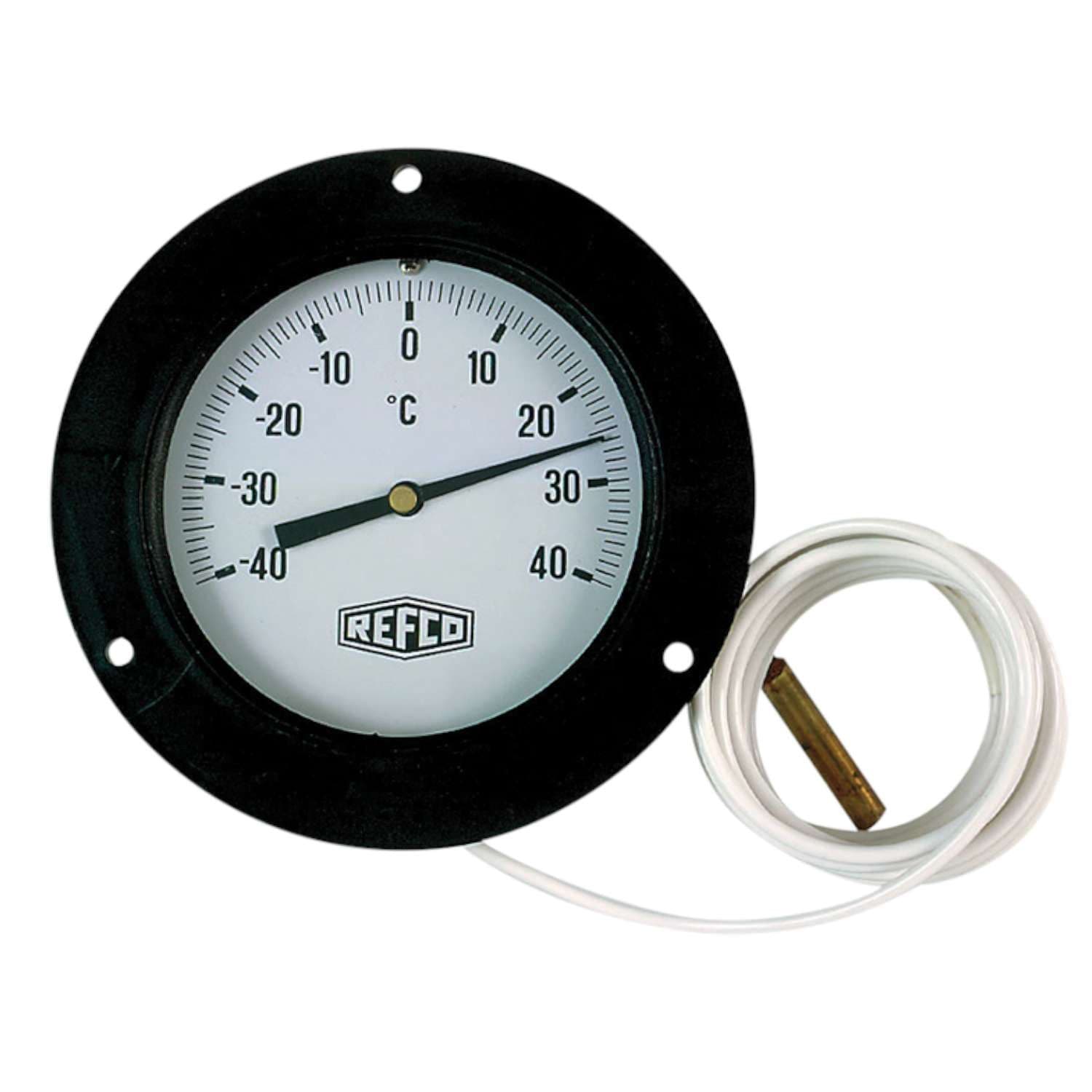

Refco Dial Thermometer F-87

Dial Thermometers with capillary tube

Universal design which can be mounted from the back or from the front.
Elegant plastic construction at a very competitive price.

Available in three different diameters: 60, 80 or 100 mm.
Thermometer with mounting flange (flange can be changed to back or front mounted)

Range: 40 up to +40 °C


Designation	Length of capillary tube	Ø	Part No
F-87-R-60-1,5	1.5 M	60 mm	9881046
F-87-R-60-3,0	3.0 M	60 mm	9881045
F-87-R-80-1,5	1.5 M	80 mm	9881044
F-87-R-80-3,0	3.0 M	80 mm	9881043
F-87-R-100-1,5	1.5 M	100 mm	9881042
F-87-R-100-3,0	3.0 M	100 mm	9881041
F-87-R-100-4,5	4.5 M	100 mm	9881040
F-87-R-100-7,5	7.5 M	100 mm	9881039
