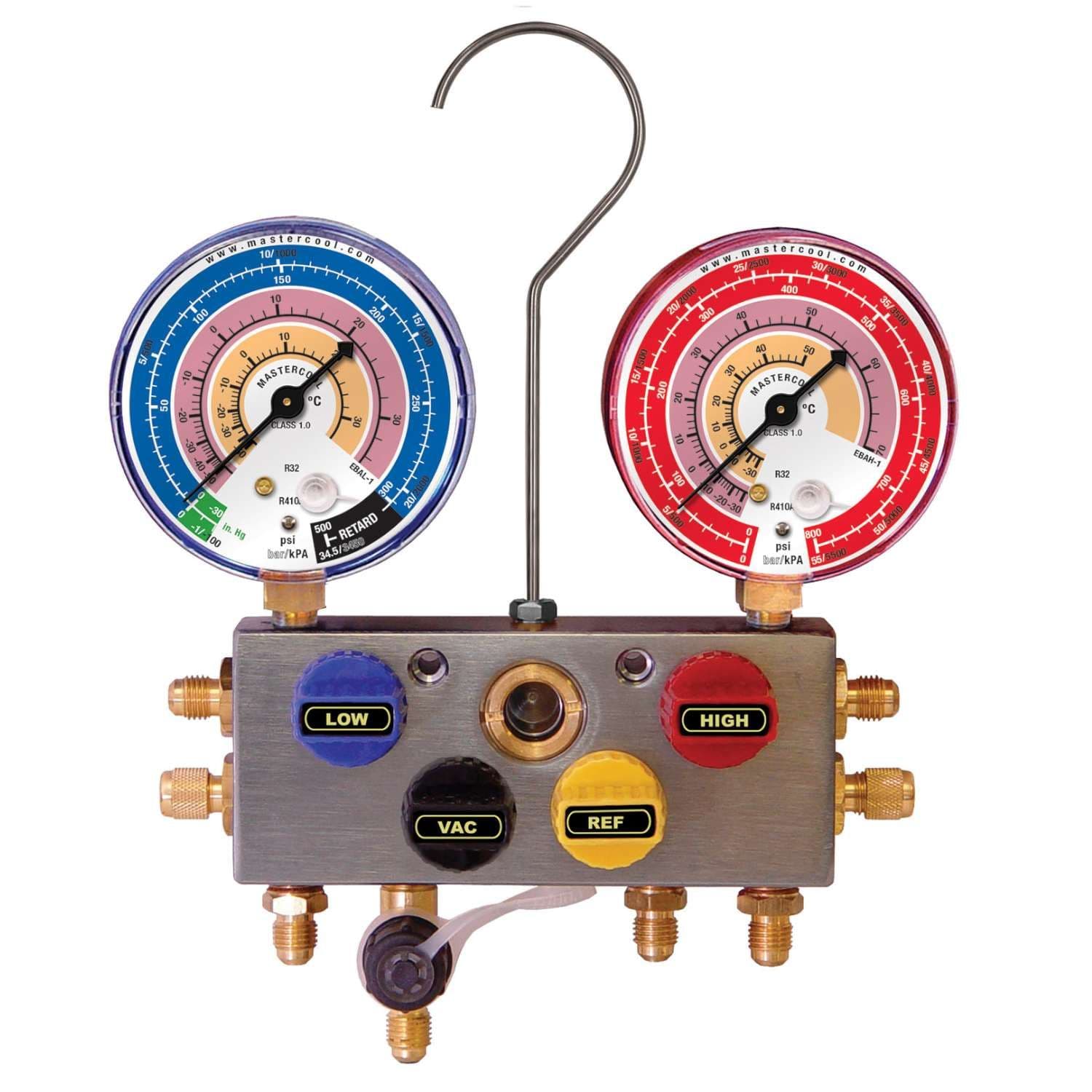

Mastercool 4 Way Ball Valve Manifold Set
Refrigerant scales for R32 R410A
Pressure reading in BAR and PSI

Mastercool is the leading manufacturer of professional quality A/C manifold gauge sets. Our manifold gauge sets are constructed of the finest materials and machined with precision to the highest quality standards. At Mastercool, every manifold we build is built to last.

All Mastercool gauges are colour coordinated for easy refrigerant recognition.

• Full 3/8 bore through the block increases flow considerably, faster charging and recovery
• Ball valve rotates 90º between two teflon washers requiring little effort to turn, even under pressure
• Opens and closes quickly with only a quarter turn
• Knob position shows whether valves are open or closed (Vertical = Open, Horizontal = Closed)
• 80 mm gauges / 1.6 gauge class
• All fittings are 1/4 SAE, tee with branch 3/8

Includes:

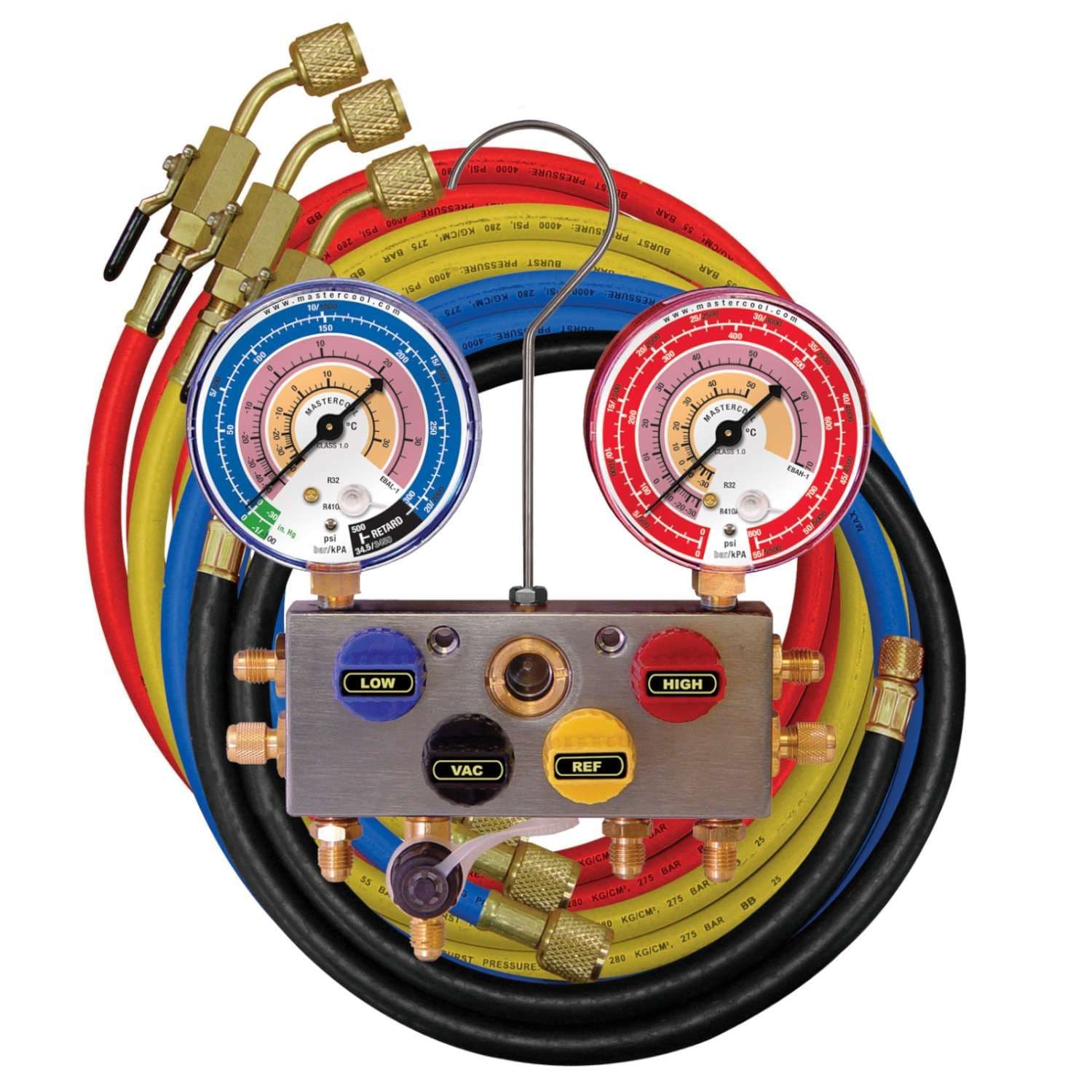

1x 4 Way Ball Valve Manifold Set R410A R32
2x 1/4" to 5/16" SAE Ball Valve Hoses - Red and Blue
1x 1/4" to 1/4" SAE Ball Valve Hose - Yellow
1x 3/8" Vacuum Hose - Black
Packed in a custom moulded carrying case.
