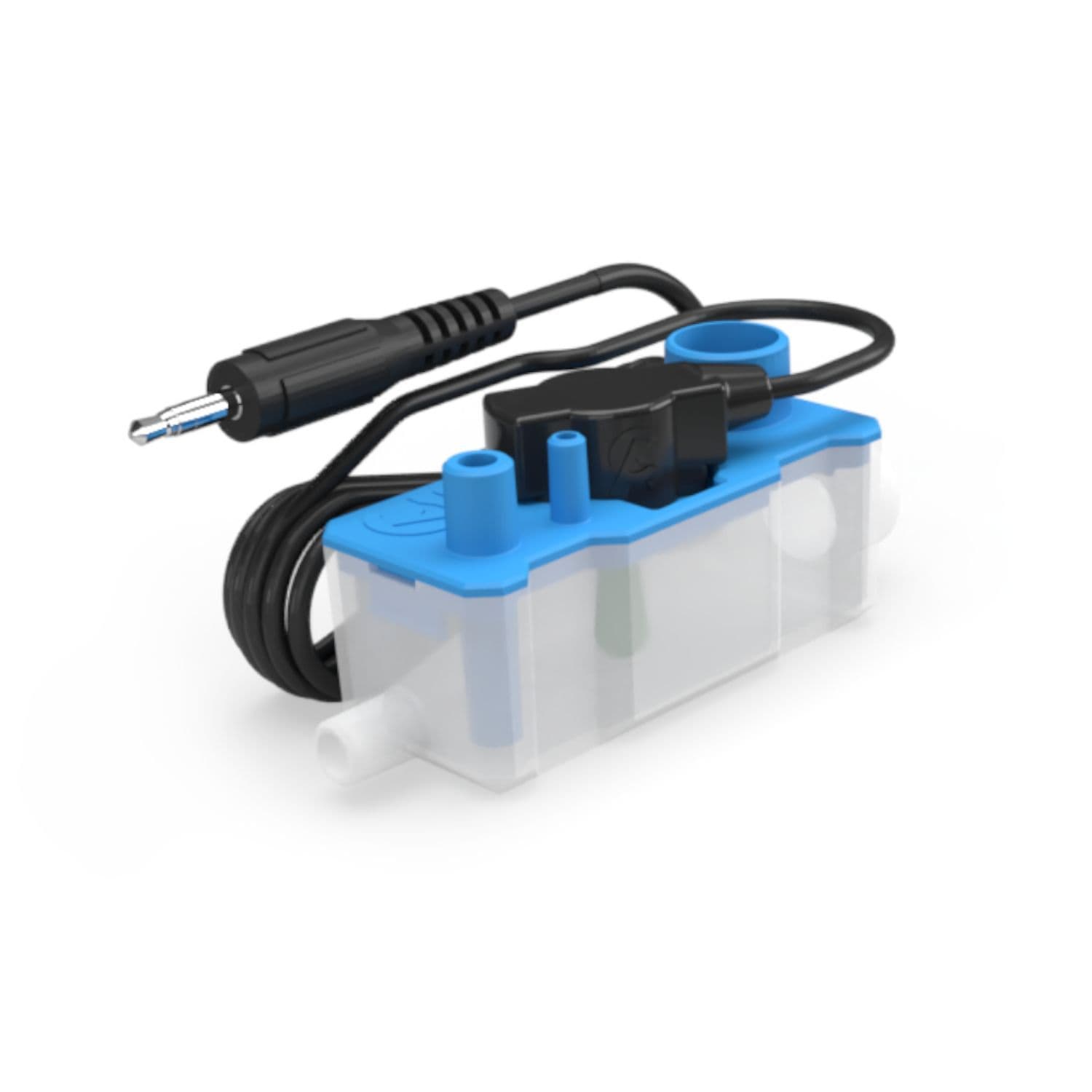

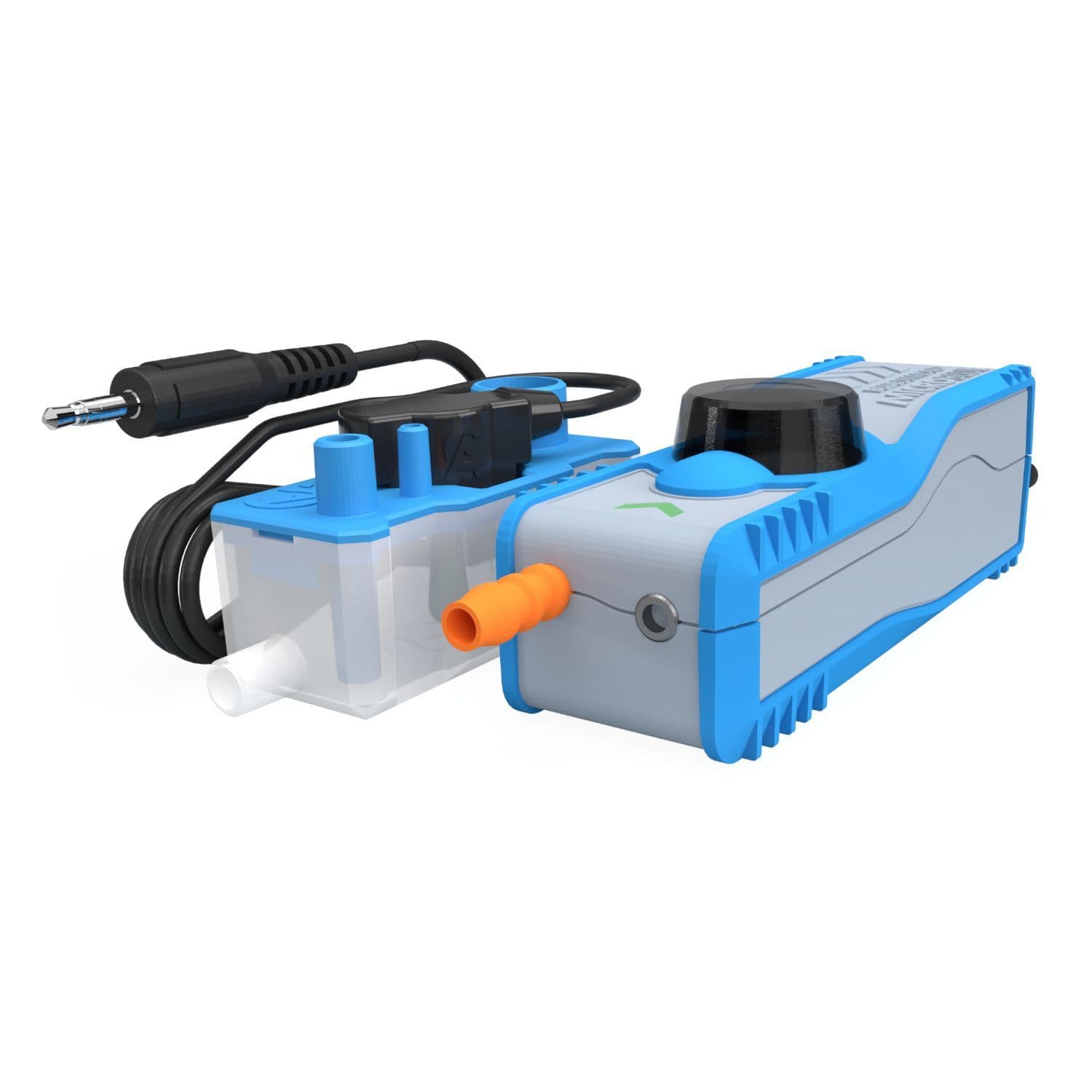

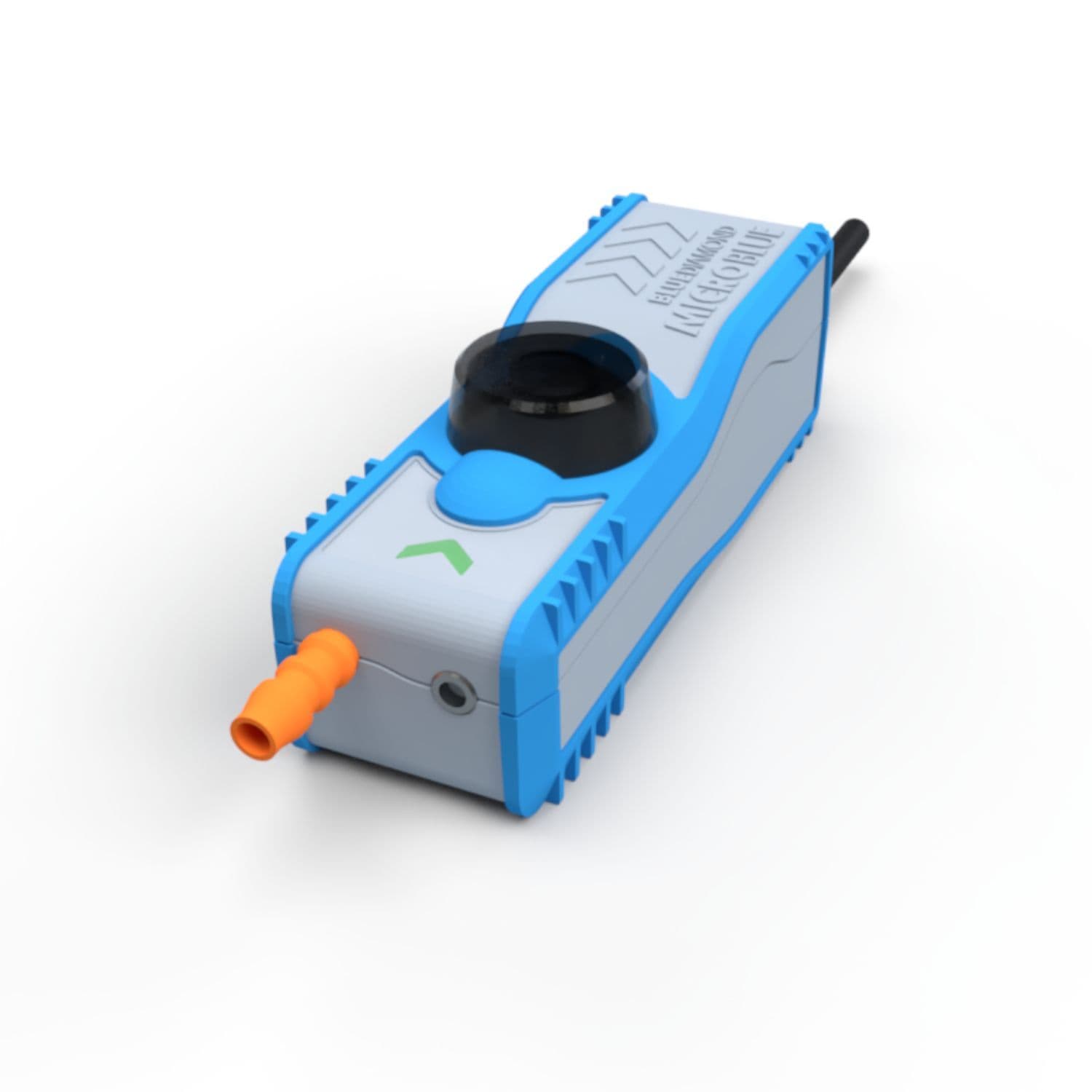

Blue Diamond MicroBlue Condensate Pump with Reservoir with Fail Safe Alarm (FSA) - X86-002
Ideal for Air Conditioning and Refrigeration

The MicroBlue® uses a revolutionary dynamic diaphragm control technology, allowing it to outperform other condensate pumps. The compact, anti-vibration design makes it suitable for conduit installations or similar discrete locations.

Dynamic Operation
Thanks to intelligent sensing technology the pump can dynamically adjust to condensate levels to operate in the quietest and most efficient possible way.

Pump Intelligence
Reservoir and pump interconnectivity allows onboard intelligence to provide installers with accurate system analysis via a light display on the pump.

Easy Install
Modular power supply design allows express installation, by simplifying the fiddly cable routing process.

The MICROBLUE® can be mounted in any orientation up to 2m away from the air conditioning unit.

Max Flow - 5 Litre per hour
Max Head - 5 Metre
Max Lift - 2 Metre

Outlet size - 6mm

In the box:
- MicroBlue Pump
- Reservoir with Fail Safe Alarm
- Non Return Valve
- Accessories pack

FSA - Fail Safe Alarm (Pump Alarm System)
Fail safe alarm, a volt free relay designed to switch the AC unit off, but leaves the pump running continuously when the condensate reaches a critical point in the reservoir.

MICROBLUE RESERVOIR SENSOR/ C21-001
With no moving parts the MICROBLUE reservoir sensor offers a reliable alternative to stuck or sunken float switches.
