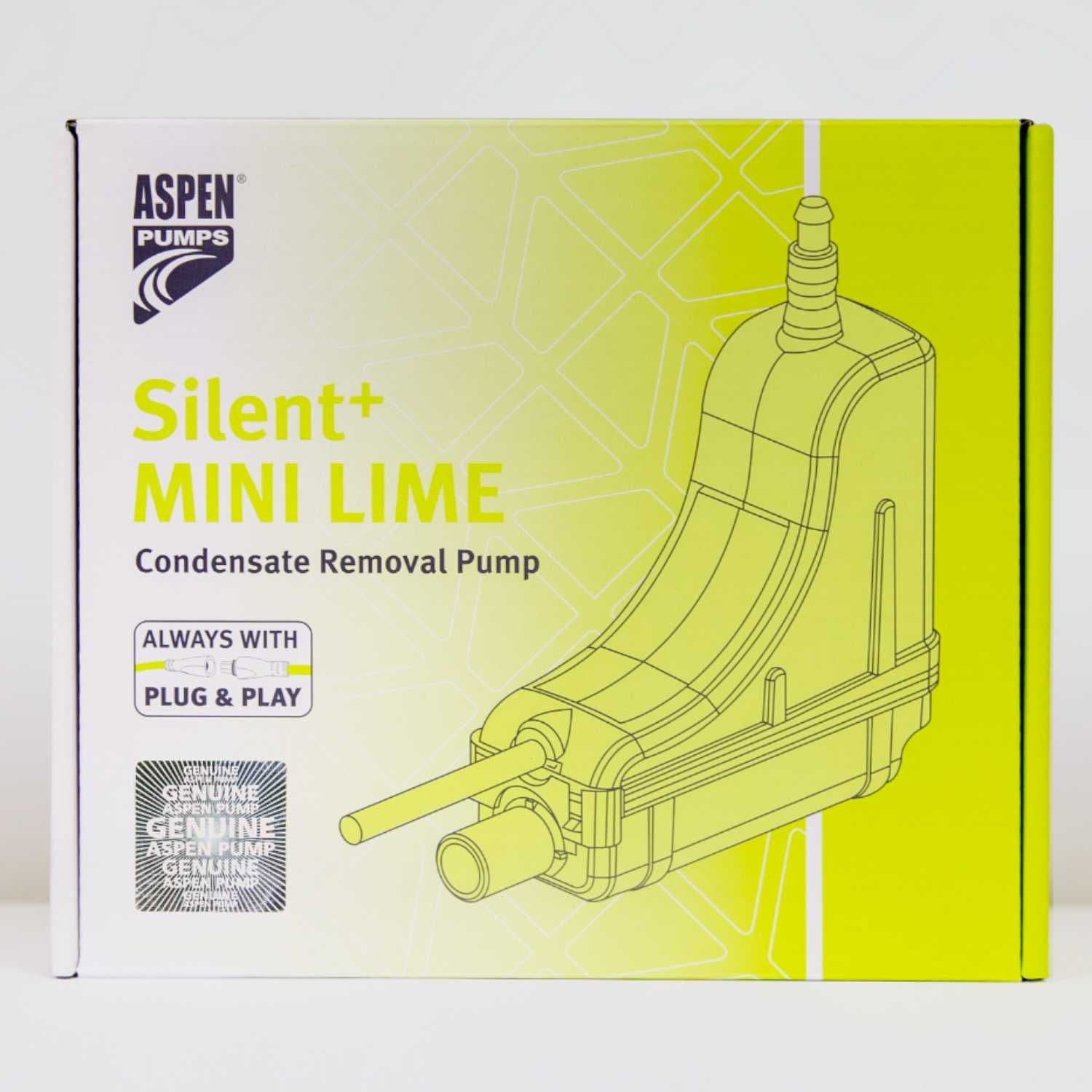

Aspen Silent+ Mini Lime Pump

The new and improved 5th gen Silent+ Mini Lime just 16dB(A) this is the quietest and most versatile of elbow pumps. Simple and flexible to install. The proven technology delivers an impressive flow rate and lower power consumption. All round maximum performance, on-demand power, near-silent operation, optimum reliability and increased energy efficiency.

KEY FEATURES

• Backwards compatible plug & play cable
• Fits all popular trunking systems
• Quick install no longer need for a damper, anti-siphon
• Up to 40L/h flow rate and up to 10 x lower power consumption

SUITABILITY

• Up to 46kW / 157,000Btu/h
• High wall split systems
• Left or right install with range of trunking systems

SPECIFICATION

• Max Flow Rate: 40L @ 0m head per hr
• Max Recommended Head: 15m
• Power Supply: 100-250 VAC, 0.18A, 2.1W, 50/60Hz
• Alarm: 5.0A N.C. (Normally closed)
• dB (a): As low as 16
• Discharge to Drain: 6mm ID
• Max water temp 40c

IN THE BOX

• Silent+ Mini Lime pump (including 1.5m Plug & Play cable)
• 500mm Lime green inlet hose 14mm ID
• 40mm Vinyl breather tube 6mm ID
• Elbow front and back
• 800mm trunking front and back
• Gasket
• Ceiling plate
• Drain connector kit
• Fixing kit
• Quick Start Guide

3 OPTIONS AVAILABLE:
FP3319/5 - Slimline Trunking in White - 80mm x 50mm
FP3320/5 - S-Ducting Trunking in White - 70mm x 65mm
FP3322/5 - Pump Only Replacement Pack

Click Here for Product Spec Sheet
